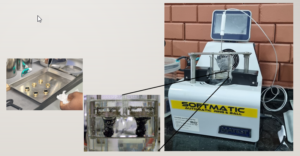

NBRRI Ring and Ball Apparatus: Critical Testing for Asphalt Softening Point

NBRRI Ring and Ball Apparatus is a specialized laboratory device designed to determine the softening point of bitumen and asphalt binders. This test is crucial for understanding the temperature susceptibility of asphalt materials, which directly impacts their performance under varying environmental conditions, such as extreme heat or cold. The Ring and Ball Apparatus is used to evaluate the thermal properties of asphalt and bituminous materials by determining the temperature at which the binder softens enough to allow a steel ball to sink through it. The softening point is an essential parameter in assessing the resilience, viscosity, and durability of asphalt under both high and low temperature conditions, helping engineers design asphalt mixtures that perform optimally in different climates.

Key Features of the NBRRI Ring and Ball Apparatus

  1. Standardized Testing Procedure The NBRRI Ring and Ball Apparatus follows a standardized procedure for determining the softening point of asphalt binders, adhering to internationally recognized test methods such as ASTM D36 and AASHTO T 53. This ensures that the results are accurate and comparable to those obtained in other laboratories.
  2. Dual Sample Chambers The apparatus includes two chambers, allowing two samples to be tested simultaneously under the same conditions. This feature enables comparative testing of different asphalt materials or formulations at the same time, which is beneficial for research and quality control.
  3. Precise Temperature Control The apparatus features a temperature-controlled water bath that maintains a constant temperature for the samples during testing. The temperature is increased at a consistent rate, allowing for an accurate measurement of the softening point at which the asphalt binder changes its state.
  4. Clear Glass Rings The apparatus uses clear glass rings to hold the asphalt sample, which allows for easy monitoring of the sample during the test. These rings are designed to maintain the asphalt in a uniform shape while providing a clear view of the behavior of the sample as it softens.
  5. Automatic Data Recording (Optional) Some advanced versions of the Ring and Ball Apparatus come equipped with automatic temperature recording and digital readouts, enabling precise tracking of the temperature at which the asphalt binder begins to soften. This data can be logged for future reference or analysis.
  6. Steel Balls The apparatus uses steel balls of a specified weight (typically 9.5 mm in diameter) to apply a consistent downward force on the asphalt sample. The ball is lowered into the sample and the temperature at which it sinks a specified distance (usually 25 mm) is noted as the softening point.

How the NBRRI Ring and Ball Apparatus Works

The NBRRI Ring and Ball Apparatus operates through a simple yet precise method that gradually heats the asphalt sample to determine the temperature at which it begins to soften. Below is a detailed description of the process:
  1. Sample Preparation Asphalt binder is first heated to a fluid state, allowing it to be poured into the clear glass rings. The sample is carefully placed into the rings to ensure that it is uniform and free of air pockets. The sample is then allowed to cool to room temperature, solidifying in the shape of the ring.
  2. Setting Up the Apparatus Once the sample is prepared, the glass rings containing the asphalt sample are placed into the test chambers of the apparatus. Each chamber is filled with distilled water, and the steel balls are placed above the samples, ensuring that they are ready to be lowered into the asphalt as the temperature increases.
  3. Temperature Increase The apparatus is powered on, and the water bath begins to heat at a controlled rate, typically at a rate of 5°C per minute. As the temperature increases, the asphalt sample gradually softens.
  4. Observation of the Steel Ball The steel balls are gently lowered into the softened asphalt sample. As the temperature rises, the asphalt binder becomes less viscous and begins to soften. The ball will eventually sink into the asphalt, moving downward as the binder loses its ability to support it.
  5. Recording the Softening Point The softening point is determined by the temperature at which the steel ball sinks to a specific depth, typically 25 mm. This is the point at which the asphalt has softened enough to allow the ball to penetrate it under its own weight.
  6. End of the Test Once the ball has sunk to the required depth, the temperature is noted, and the test is concluded. The softening point is reported as the temperature at which the ball penetrates the sample to the specified depth.
  7. Repeat Testing (Optional) If required, additional samples of asphalt may be tested to verify consistency and compare results. The test can be performed on multiple samples to ensure that the asphalt material is within the specified softening point range.

Applications of the NBRRI Ring and Ball Apparatus

The NBRRI Ring and Ball Apparatus is widely used in various applications related to the testing of bitumen and asphalt materials. Key applications include:
  1. Asphalt Binder Quality Control The softening point is an important indicator of the workability and thermal behavior of asphalt binders. The Ring and Ball test helps determine whether the binder meets the desired specifications for performance in different climates. It is used in quality control to ensure that binders used in road construction will maintain their integrity at high temperatures and resist rutting.
  2. Superpave Performance Grading (PG) The softening point, as determined by the Ring and Ball test, is used in the Superpave Performance Grading (PG) system to classify asphalt binders. The PG system helps engineers select the appropriate binder for specific climate conditions and traffic loads. A higher softening point indicates that the binder will perform well under higher temperatures.
  3. Assessment of Asphalt Durability The softening point provides insights into the durability of asphalt under extreme temperature conditions. Materials with high softening points are better suited for areas with high ambient temperatures and intense sunlight, where pavements are exposed to high heat.
  4. Research and Development of New Asphalt Materials The Ring and Ball test is frequently used in the development of new asphalt formulations, including those that incorporate polymers, recycled materials, or additives. Researchers use this test to evaluate the thermal properties of new materials and ensure that they are suitable for use in road construction.
  5. Climate Suitability Evaluation The softening point is used to determine how asphalt will behave in different climates. Asphalt that softens too quickly at elevated temperatures can result in rutting and pavement failure. The Ring and Ball test helps engineers ensure that the asphalt used in a particular region will withstand local temperature extremes.
  6. Highway Design and Pavement Performance By evaluating the softening point, engineers can predict how the asphalt will behave under heavy traffic and high temperatures, particularly in areas prone to hot weather. This ensures that roads are built with materials that can resist deformation, maintain stability, and perform well over the long term.

Benefits of the NBRRI Ring and Ball Apparatus

  1. Accurate Softening Point Measurement The Ring and Ball Apparatus provides highly accurate and repeatable results for determining the softening point of asphalt. This ensures that the performance and durability of the asphalt binder are correctly evaluated.
  2. Improved Asphalt Mix Design By determining the softening point of binders, the apparatus helps engineers design asphalt mixes that are suitable for specific temperature ranges, enhancing the overall performance of roadways.
  3. Quality Assurance The test is crucial for ensuring that asphalt binders meet the required specifications for consistency and performance, reducing the risk of road failure due to material issues. The automated nature of the apparatus ensures precision and reduces human error.
  4. Time Efficiency The Ring and Ball test is a relatively quick and simple process that provides valuable data in a short time frame. This helps speed up the testing process, making it suitable for large-scale quality control operations.
  5. Versatility The apparatus can be used to test various types of asphalt binders, including modified asphalts and sustainable formulations, making it a versatile tool for both traditional and innovative asphalt materials.
  6. Safety and Ease of Use The NBRRI Ring and Ball Apparatus is designed with user safety in mind. The controlled heating system ensures that operators are not exposed to excessive heat, and the design of the apparatus makes it easy to use without requiring complex procedures.

Conclusion

The NBRRI Ring and Ball Apparatus is a fundamental tool for evaluating the thermal properties of asphalt binders, specifically their softening point, which directly influences the workability, durability, and performance of asphalt under different temperature conditions. By accurately measuring the softening point, this apparatus helps engineers design better-performing asphalt mixtures, ensure quality control, and select materials suitable for specific environmental conditions. Whether for research, development, or quality assurance, the NBRRI Ring and Ball Apparatus is an indispensable tool in the production and evaluation of high-quality road infrastructure.
