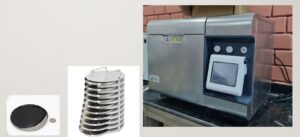

NBRRI Pressure Aging Vessel (PAV): Essential for Long-Term Asphalt Durability Testing

NBRRI Pressure Aging Vessel (PAV) is an advanced laboratory instrument designed to simulate the long-term oxidative aging process that asphalt undergoes during its service life on roadways. The PAV plays a crucial role in the evaluation of bitumen and asphalt performance, particularly in assessing the durability and aging properties of asphalt binders under high temperature and pressure conditions. Developed by the Nigerian Building and Road Research Institute (NBRRI), the PAV is integral to the Superpave Performance Grading (PG) system, enabling engineers and researchers to better predict the performance of asphalt under real-world conditions over extended periods.

Key Features of the NBRRI Pressure Aging Vessel (PAV)

  1. Simulates Long-Term Aging Conditions The PAV is designed to replicate the effects of oxidative aging that asphalt undergoes over time due to exposure to oxygen, heat, and ultraviolet (UV) radiation. By accelerating the aging process, the PAV provides valuable insights into the material’s stiffness and viscoelastic behavior after extended exposure to environmental conditions.
  2. High-Pressure and High-Temperature Chamber The device operates in a high-pressure and high-temperature environment, typically at 100°C (212°F) and pressures around 2.1 MPa (300 psi), which is consistent with the aging conditions asphalt experiences over several years of service. This controlled environment helps simulate the oxidation process that occurs when asphalt is exposed to oxygen over long periods of time.
  3. Precision Control and Monitoring The NBRRI PAV offers precise control over temperature and pressure, which are key parameters for accurate aging simulation. The oven features advanced temperature controllers and pressure monitoring systems to maintain optimal conditions throughout the aging cycle, ensuring reproducible and consistent results.
  4. Real-Time Data Acquisition The system is equipped with sensors and automated data collection tools that allow for real-time monitoring of the aging process. This enables operators to track key variables and ensure that the test parameters remain within the specified range for accurate aging simulation.
  5. Multiple Sample Capability The PAV is capable of handling multiple asphalt binder samples simultaneously, making it efficient for testing different materials under the same conditions. This is particularly useful for comparing the effects of various binder formulations or additives on aging behavior.
  6. Safety Features The PAV includes built-in safety features, such as automatic pressure release valves and over-temperature protection, ensuring safe operation even under high-pressure and high-temperature conditions.

How the NBRRI Pressure Aging Vessel (PAV) Works

The NBRRI Pressure Aging Vessel is designed to simulate the long-term oxidative aging of asphalt binders under controlled temperature and pressure. Here is a step-by-step breakdown of how the device works:
  1. Sample Preparation Asphalt samples are placed in the PAV’s aging chamber in small, sealed containers. The amount of sample used typically corresponds to the standard requirements for performance grading and other rheological tests. The sample is usually preheated to the testing temperature before being loaded into the vessel.
  2. Set Temperature and Pressure The operator sets the desired temperature (typically around 100°C or 212°F) and pressure (about 2.1 MPa or 300 psi) for the aging process. These parameters replicate the conditions that asphalt faces over long periods of time in real-world environments. The oven is then sealed, and the aging cycle begins.
  3. Aging Process Under the controlled high-temperature and high-pressure conditions, the asphalt sample undergoes a chemical oxidation process. This involves the reaction of the bitumen with oxygen in the air, which leads to viscosity increase, stiffening, and the formation of more solid-like properties in the binder. The volatile compounds in the asphalt evaporate, and the binder becomes more rigid and less flexible over time.
  4. Duration of Aging The aging process typically lasts for 20 hours, which simulates approximately 5 to 10 years of field aging under normal traffic and environmental conditions. This accelerated aging allows for a rapid assessment of asphalt’s long-term performance without waiting for several years of natural aging.
  5. Sample Extraction and Analysis After the aging process is complete, the samples are extracted from the Pressure Aging Vessel and allowed to cool. The aged samples are then analyzed using rheological testing equipment, such as a Dynamic Shear Rheometer (DSR) or Rotational Viscometer, to assess their viscoelastic properties, stiffness, and performance grading.

Applications of the NBRRI Pressure Aging Vessel (PAV)

The NBRRI Pressure Aging Vessel is widely used in various areas of asphalt testing and road construction. Some of the key applications include:
  1. Superpave Performance Grading (PG) System The PAV is a critical part of the Superpave Performance Grading system, which determines the optimal temperature ranges for which asphalt binders should be used in road construction. By simulating long-term aging, the PAV helps classify asphalt binders according to their ability to resist rutting (high temperature) and thermal cracking (low temperature), ensuring that the asphalt mix will perform well under expected service conditions.
  2. Evaluation of Asphalt Binder Durability The PAV helps assess the aging resistance of asphalt binders by simulating the chemical and physical changes that occur in the binder over time. This is crucial for determining how well a specific asphalt formulation will withstand long-term use in roadways exposed to heat, traffic, and environmental factors.
  3. Testing Polymer-Modified Asphalts (PMAs) Asphalt formulations that contain polymer modifications or recycled materials may behave differently under aging conditions. The PAV can test these modified asphalts to ensure they maintain their rheological properties and performance characteristics over time, helping researchers optimize their durability and resistance to wear.
  4. Development of New Asphalt Mixes The NBRRI PAV is used in research and development for new asphalt binders and innovative mixtures. By simulating the aging process, the PAV helps researchers understand how different binders perform under oxidative aging and allows them to adjust the formulation to enhance performance.
  5. Quality Control and Assurance In asphalt production, it’s essential that binders meet performance standards for specific climates and traffic conditions. The PAV is used in quality control and quality assurance processes to ensure that the asphalt binder will perform as expected over the course of its service life.

Benefits of the NBRRI Pressure Aging Vessel (PAV)

  1. Realistic Aging Simulation The PAV provides an accurate and reliable way to simulate the long-term aging process of asphalt, allowing for more accurate predictions of how asphalt will perform in real-world conditions over time.
  2. Improved Asphalt Durability By accurately modeling oxidative aging, the PAV helps identify asphalt binders that are more durable, reducing the risk of premature rutting, cracking, and deformation under traffic and environmental stress.
  3. Optimized Asphalt Mix Design The ability to simulate aging helps engineers design asphalt mixes that resist aging more effectively, improving the long-term performance and cost-effectiveness of roadways.
  4. Enhanced Performance Grading The PAV aids in precise performance grading, ensuring that the asphalt binder selected for use in a particular region will withstand the specific temperature and traffic conditions expected in that area.
  5. Predicts Long-Term Behavior The PAV enables researchers to predict how different asphalt formulations will behave after years of use, allowing for the development of more reliable materials that can withstand the challenges of real-world road conditions.
  6. Compliance with Industry Standards The NBRRI Pressure Aging Vessel is fully compliant with international standards for asphalt aging tests, ensuring that the results are reliable and recognized globally.

Conclusion

NBRRI Pressure Aging Vessel (PAV) is an essential tool for understanding and simulating the long-term aging of asphalt and bitumen. By accurately replicating the oxidative aging process that asphalt undergoes over years of service, the PAV enables engineers to assess the durability and performance of asphalt binders, ensuring that they are suitable for specific environmental and traffic conditions. Its role in the Superpave Performance Grading system, quality control, and asphalt mix development makes it an invaluable tool for improving the longevity and sustainability of road construction materials, contributing to safer, more durable infrastructure.
