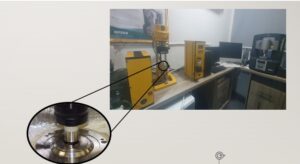

NBRRI Dynamic Shear Rheometer (DSR): Advanced Testing for Asphalt and Bitumen Performance

NBRRI Dynamic Shear Rheometer (DSR) is a critical piece of equipment used to measure the rheological properties of bitumen and asphalt mixtures under simulated conditions. Designed by the Nigerian Building and Road Research Institute (NBRRI), the DSR helps engineers evaluate the viscoelastic behavior of asphalt, an essential factor in understanding how asphalt behaves under different temperature and traffic loading conditions. This device plays a pivotal role in the quality control, performance grading, and asphalt mix design processes, ensuring that materials used in road construction can withstand long-term stress, fatigue, and high temperatures.

Key Features of the NBRRI Dynamic Shear Rheometer (DSR)

  1. High-Precision Measurement of Rheological Properties The NBRRI DSR provides precise measurements of shear modulus (G*) and phase angle (δ) of bitumen samples. These properties are key to understanding the elasticity and viscosity of asphalt at different temperatures, which directly correlates to its performance on the road.
  2. Temperature Control The device features a temperature-controlled chamber that allows bitumen samples to be tested across a wide range of temperatures, from low to high, simulating real-world conditions. This helps determine the temperature susceptibility of the asphalt, which is crucial for understanding its behavior under seasonal temperature variations.
  3. Dynamic Testing Capabilities The DSR is capable of conducting dynamic oscillatory shear tests, applying a small oscillatory stress to the bitumen sample and measuring its response. This dynamic testing allows for the assessment of the material’s viscoelasticity, including its ability to recover from deformation under loading conditions.
  4. Wide Range of Testing Frequencies The DSR can apply a range of frequencies to simulate the various speeds and stresses that asphalt experiences in the real world. This makes it possible to evaluate both high-frequency conditions (e.g., heavy traffic) and low-frequency conditions (e.g., slow-moving traffic or static loads).
  5. Advanced Data Acquisition and Analysis The NBRRI DSR is equipped with highly sensitive sensors and data acquisition systems that provide detailed information about the rheological properties of the asphalt. This data can be analyzed to predict the performance of the asphalt in real-world conditions, including rutting resistance, fatigue resistance, and thermal cracking potential.
  6. Compliance with International Standards The NBRRI DSR is designed to comply with industry standards and testing methods, such as the Superpave Performance Grading (PG) system, which classifies asphalt based on its performance characteristics under various temperature and traffic conditions.

Applications of the NBRRI Dynamic Shear Rheometer (DSR)

The NBRRI DSR is a versatile tool used for a variety of purposes in the asphalt and bitumen testing process. Key applications include:
  1. Asphalt Mix Design and Performance Grading The DSR is integral to the Superpave Performance Grading system, which classifies asphalts based on their rheological properties. By testing asphalt at different temperatures and loading conditions, the DSR helps engineers select the appropriate performance grade (PG) for specific road conditions, ensuring long-lasting pavements.
  2. Assessment of Polymer-Modified Asphalts The DSR is used to test polymer-modified asphalts (PMAs), which are designed to improve the performance of traditional bitumen. By evaluating the rheological properties of PMAs, the DSR helps determine their elasticity, viscosity, and resilience under various traffic and temperature conditions.
  3. Evaluation of Fatigue and Rutting Resistance The dynamic shear tests performed by the DSR help engineers assess the fatigue resistance and rutting resistance of asphalt mixes. This is critical for ensuring that the mix can withstand repeated traffic loads without cracking (fatigue) or permanent deformation (rutting).
  4. Prediction of Low-Temperature Performance The DSR is used to predict how asphalt will behave at low temperatures, where it is prone to thermal cracking. By testing the material at low temperatures, engineers can ensure that the asphalt will remain durable even in cold climates.
  5. Research and Development of New Asphalt Materials Researchers use the DSR to develop new types of asphalt mixtures, including those with recycled materials, biopolymers, or modified binders. The rheological testing helps in evaluating how these new materials perform under simulated traffic and environmental conditions.
  6. Quality Control in Asphalt Production The DSR is an essential tool in the quality control of asphalt production. By routinely testing bitumen and asphalt samples, it ensures that the materials meet the required performance specifications for various environmental and traffic conditions.

Benefits of the NBRRI Dynamic Shear Rheometer (DSR)

  1. Improved Asphalt Performance Prediction The DSR provides valuable insights into the performance of asphalt under different traffic and temperature conditions. This leads to more accurate performance predictions and helps engineers select the best asphalt mix for a given project.
  2. Optimization of Asphalt Mix Design By testing different asphalt formulations and evaluating their rheological properties, the DSR aids in optimizing asphalt mix designs to achieve the desired balance of strength, durability, and workability.
  3. Enhanced Durability of Pavements The use of DSR testing in the performance grading process ensures that the asphalt used in road construction is able to withstand high temperatures (resisting rutting) and low temperatures (resisting cracking), leading to longer-lasting and more durable pavements.
  4. Compliance with Industry Standards The NBRRI DSR is compliant with international standards, including those set by ASTM and AASHTO, ensuring that the results obtained are consistent, reliable, and widely accepted for use in asphalt design and quality control.
  5. Accurate and Reliable Data The DSR provides accurate and reproducible data on the rheological properties of asphalt, which is essential for making informed decisions regarding asphalt mix design, material selection, and performance predictions.
NBRRI Dynamic Shear Rheometer (DSR) is a vital tool for testing the rheological properties of bitumen and asphalt, providing critical data that ensures the performance and durability of asphalt mixes under various temperature and traffic conditions. Its role in performance grading, mix design optimization, and quality control makes it indispensable for engineers and researchers working in road construction and material development. By ensuring that asphalt performs optimally in all weather conditions, the NBRRI DSR helps in the creation of long-lasting, high-performance pavements that meet the demands of modern road infrastructure.
